Product Overview

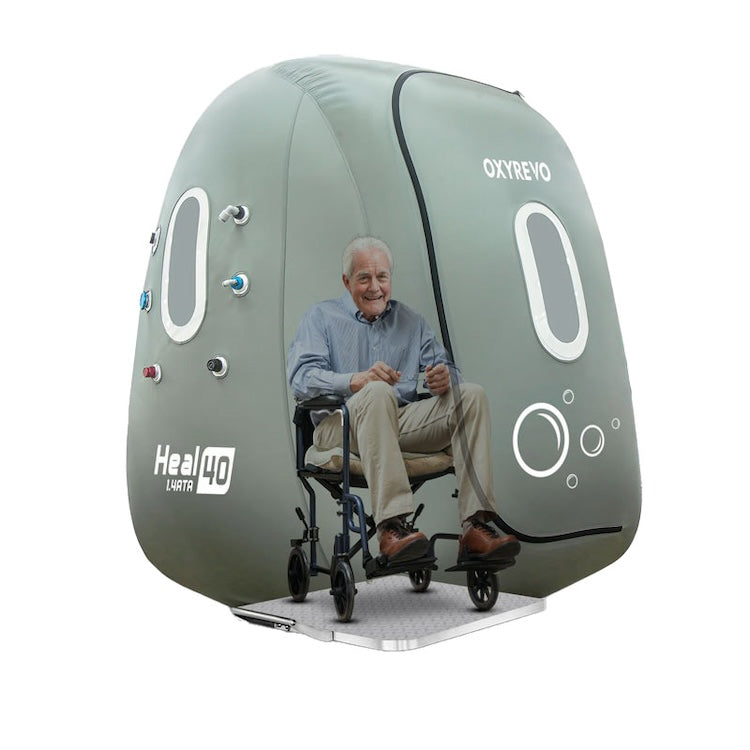

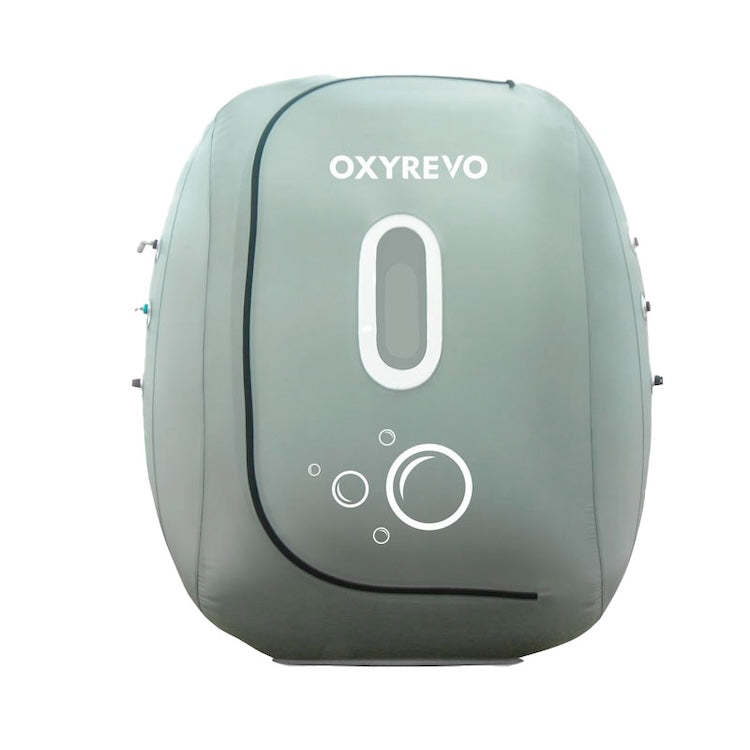

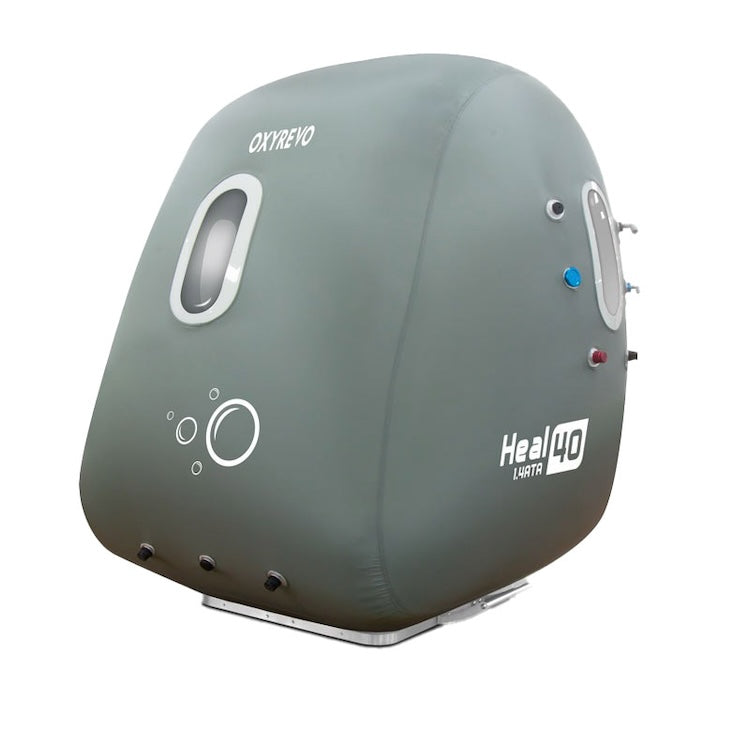

The OxyRevo Heal40 is a pioneering hyperbaric oxygen chamber specifically engineered to provide easy access for wheelchair users. Standing 75 inches tall when fully inflated, it offers an incredibly spacious vertical interior that eliminates the physical barriers found in traditional lying-flat models. This chamber is built with a sturdy aluminum base and an integrated entry slope, allowing users to roll in and out with complete independence. Whether utilized with a wheelchair or a standard chair, the Heal40 makes professional-grade recovery accessible to everyone.
Inclusive Design & Accessibility
The Heal40 is designed to solve the mobility challenges often associated with portable hyperbaric units:
-
Wheelchair Optimized: The expansive 62-inch wide footprint and reinforced aluminum base are specifically designed to support the weight and movement of a wheelchair.
-

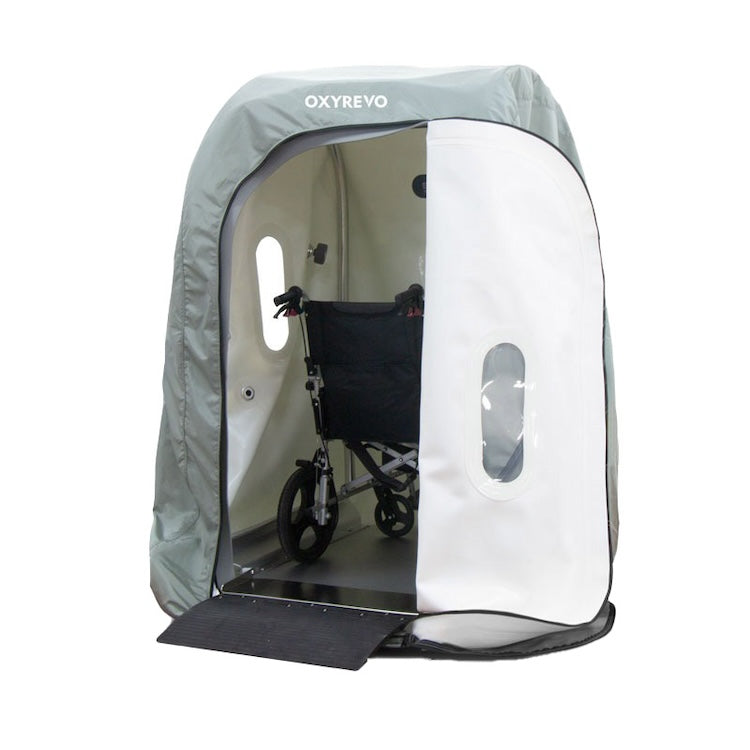

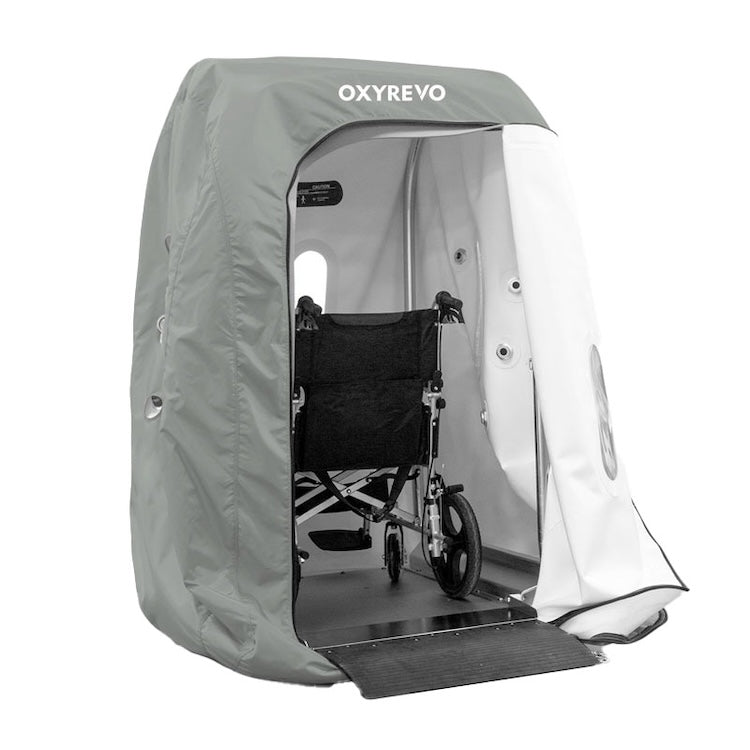

Seamless Entry Slope: Includes a built-in ramp that facilitates smooth entry and exit, promoting user independence and safety.
-
Roomy Vertical Interior: The generous height (75") and width (62") provide a bright, non-claustrophobic environment where caregivers can also assist the user if necessary.
-
Dual Pressure Monitoring: Equipped with high-accuracy, aviation-grade gauges inside and outside the unit, ensuring consistent readings for both the user and external assistants.
Advanced Engineering & Safety
OxyRevo utilizes premium manufacturing techniques to ensure a safe, high-performance environment:
-
High-Frequency Heat Welding: Unlike brands that use toxic glues or standard sewing, the Heal40 features heat-welded seams for maximum structural durability and an odor-free, non-toxic experience.
-
Curved Zipper System: A proprietary curved zipper design reduces friction and stress on the seal, utilizing medical-grade silicone strips for a perfect, airtight closure every time.
-
Whisper-Quiet Operation: Features custom-developed automatic pressure relief valves that distribute airflow evenly, maintaining noise levels below 50 dB for a peaceful therapy session.
-
Rapid Exit Safety: Equipped with emergency valves that allow the user to depressurize and exit the chamber in under 30 seconds if required.
Key Features
-
Adjustable Pressure Control: An exclusive converter allows users to set the chamber to 1.2, 1.3, or 1.4 ATA. This flexibility is ideal for gradually adjusting to ear pressure during initial sessions.
-
Panoramic Natural Lighting: Features up to seven large, double-layered windows that provide a transparent view and allow ample light to enter, creating a relaxed atmosphere.
-
Permanent Laser Marking: All valves and operational labels are UV laser-printed directly onto the material. They will not peel or fade like traditional paper stickers.
-
Slow Rebound Support: The interior design accommodates high-density materials to provide excellent support and prevent discomfort from rebound pressure during use.
Technical Specifications
-
Working Pressure: 1.4 ATA (Adjustable from 1.2 – 1.4).
-
Dimensions (Inflated): 67"L x 62"W x 75"H.
-
Total Weight: 95 lbs (43 kg).
-
Sound Level: ≤50 dB (Whisper Quiet).
-
Window Configuration: Large double-layered windows (Top, Foot, and Sides).
-
Material: Eco-friendly heat-welded material with reinforced aluminum base.
Care & Maintenance
-

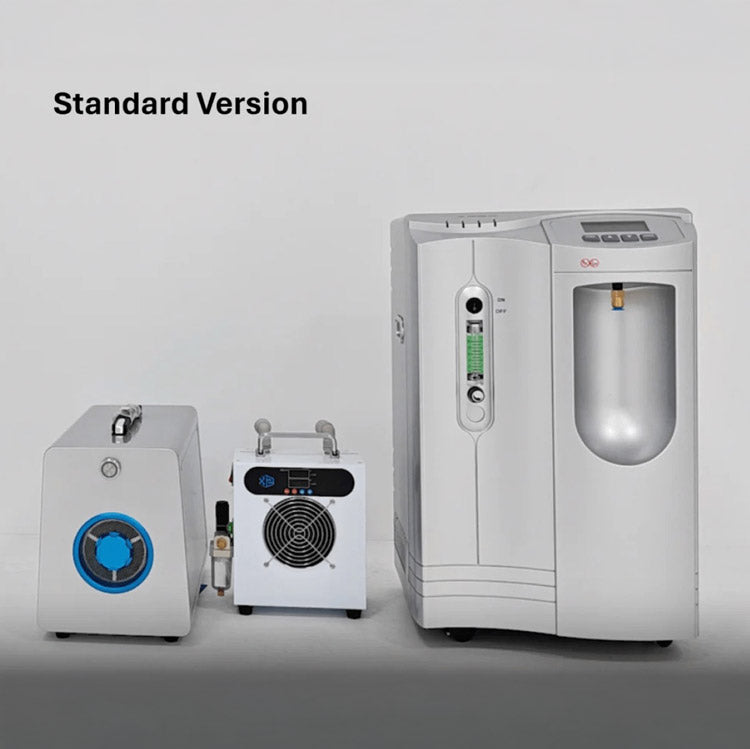

Self-Generating Oxygen: Includes a high-capacity oxygen generator that produces pure oxygen continuously—no oxygen tanks are needed.
-
Simplified Upkeep: Maintenance is low-cost and easy; only the compressor filter requires replacement every 6–12 months.
-
Hygiene: The headset and internal surfaces can be easily sanitized with rubbing alcohol between uses.
Why Choose the Heal40?

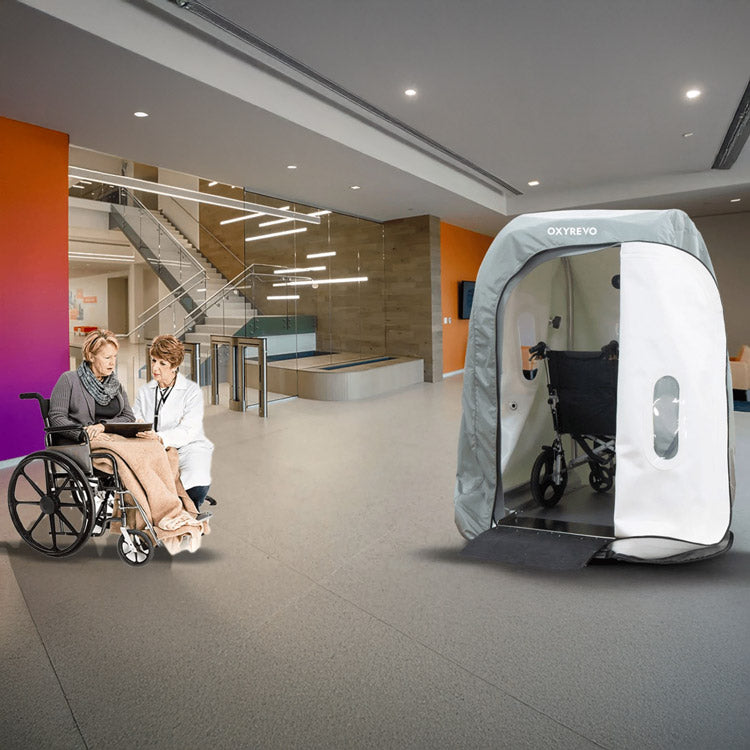

The OxyRevo Heal40 is the definitive choice for rehabilitation centers, senior living facilities, and home users who require a mobility-first approach to hyperbaric therapy. By combining accessibility with clinical-grade performance, it ensures that the anti-inflammatory and recovery benefits of HBOT are available to all individuals, regardless of physical mobility.
